Home - Products - HPC Hydraulic Equipment - Hand valve (Monoblock Directional Control Valve) - CDB & ZCDB Series

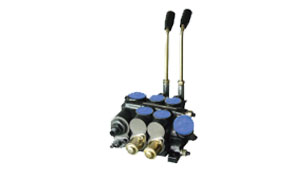

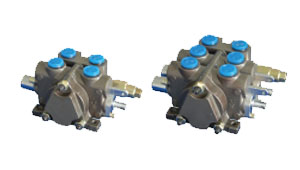

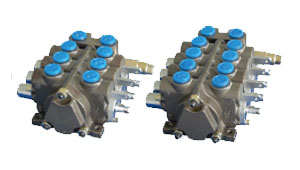

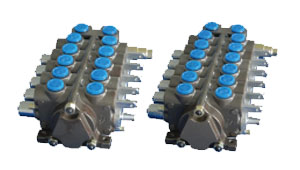

CDB & ZCDB SeriesMonoblock Directional Valve CDB & ZCDB Series
   • Oil circuit modes : parallel • Selective spool functions: O, A, Y
• Joining port: L (screw connection)
• Selective operation methods: manual control
• Valve capable of handling up to 80l/min with pressure 160bar, 200bar, 250bar
• They are split-flow valves &non split-flow valve two series with 1 to 6 working sections,
• Nominal diameter: G3/8, G1/2; M22*1.5
• Model examples: CDB-L15F-OT; CBD-L15F-5OT; ZCDB-L15F-2OT-G1/2; ZCDB-L15-7OT-G1/2 etc.
|
