Home - Products - HPC Hydraulic Equipment - Hand valve (Monoblock Directional Control Valve) - ZDA-L15 Series

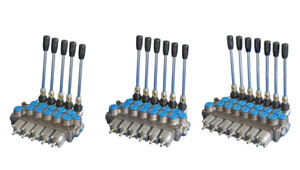

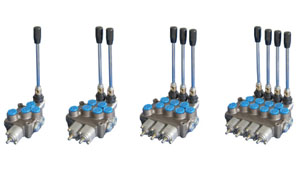

ZDA-L15 SeriesMonoblock Directional Valve ZDa-L15 series
 • Monoblock types with 1 to 7 working sections
• Parallel circuit
• Joining port: L (screw connection)
• Spool returning type with T (spring return) and W (ball locking)
• Flow 63 l/min with nominal pressure 200bar
• Model examples: ZDa-L15F-OT; ZDa-L15F-3OT; ZDa-L15F-6OT
• Nominal diameter: G1/2; G3/8; M18*1.5• Spool function: O, P. Y, A
|
