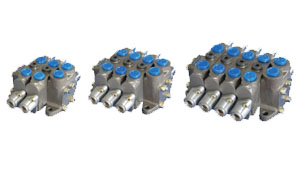

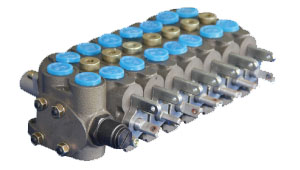

DL Series

Monoblock Directional Valve

DL Series
• Sectional types with 1 to 12 working sections
• Oil circuit modes : parallel; serial; parallel & serial combine
• Selective spool functions: O, Y, A, Q, D, P, M, k
• Joining port: L (screw connection)
• Selective operation methods: manual control; handle+pneumatic control; hydraulic control
• Flow 30l/min, 63l/min, 100l/min, 160l/min, with pressure 160bar, 200bar, 250bar max 315bar
• Sectional types with 1 to 12 working sections
• Nominal diameter: G3/8, G1/2; G3/4; G1; M16*1.5; M18*1.5; M22*1.5; M27*2; M33*2
• Model examples. DL-L8F-2OT; DL-E15-M4T.O5T.QW; DL-F20-O4T.M6T-J, DL-F25-Y4W.O5T.Q1W etc
